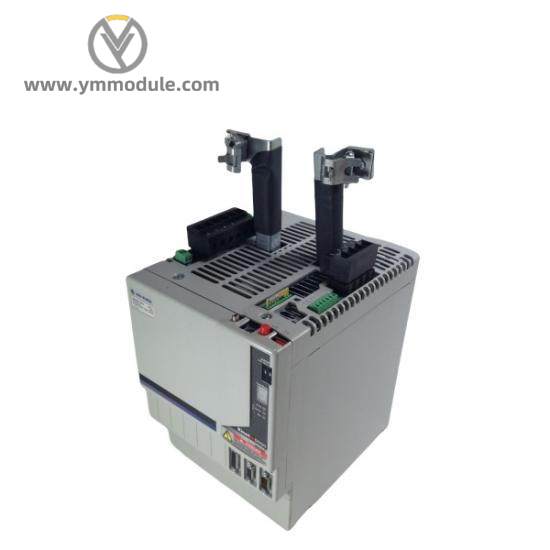

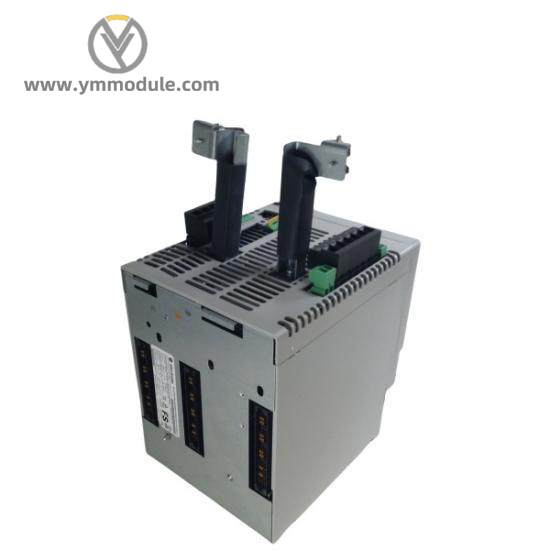

Siemens 2094 BC07-M05-S Control Module

Brand:Allen-Bradley

Model:Kinetix 6000

Series:2094-BC07-M05-S

Weight:22.3 lbs (10.1 kg)

Power Rating:45 kW

Output Amperage:68 A

Efficiency Rating:97%

Input Voltage Range:360-480V nominal, 324…528V rms, 3-phase

Frequency Range:47-63 Hz

Control Power AC Input Voltage:324…528V rms, three-phase

Bus Undervoltage:275V DC

Control Voltage:95…264V rmss, single-phase

Bus Overvoltage:825V DC

Maximum Power Output:45 kW

Continuous Power Output to Bus:45kW

Internal Shunt Continuous Power:200 Watts

Internal Shunt Peak Power:22,300 Watts

    Engineered with cutting-edge technology, the Allen-Bradley Kinetix 6000 Drive 2094-BC07-M05-S seamlessly integrates into complex machinery systems, offering unparalleled precision and reliability.

    This integrated axis module boasts a weight of 22.3 lbs (10.1 kg), making it highly portable and adaptable to various industrial environments.

    Equipped with a Safe Torque-off feature, the 2094-BC07-M05-S ensures safety during maintenance operations, minimizing the risk of accidents.

    Available in three series (A, B, C) with customizable overload and peak power options, this module caters to a wide range of application needs, from basic to highly demanding scenarios.

    With its exceptional 97% efficiency rating, the Allen-Bradley Kinetix 6000 Drive 2094-BC07-M05-S optimizes energy consumption, contributing to cost savings and environmental sustainability.
