Operating Voltage:12-48V DC
Resolution:24-bit
Accuracy:+/- 0.15% of reading
Operating Temperature Range:-20°C to +70°C
Rotation Speed:Up to 1000 RPM
Connection Type:MODBUS TCP/IP

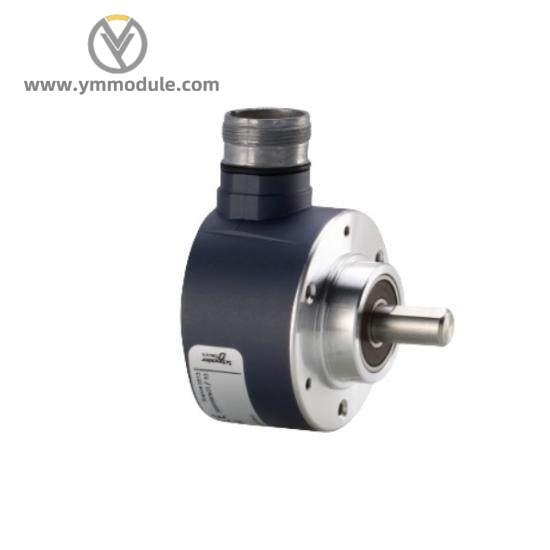

The Schneider XCC3510PS84SBN Absolute Encoder is engineered for demanding industrial environments where precision and durability are paramount. This encoder boasts a high-resolution 12-bit output, enabling accurate position measurement over up to 16,384 turns. It ensures reliable operation within an extensive temperature range from -40°C to +85°C, making it suitable for extreme conditions found in various industries.
Equipped with a 4-wire analog signal output, this encoder provides smooth and continuous data transmission, facilitating seamless integration with control systems. Its aluminum alloy housing not only ensures robustness against mechanical stresses but also enhances heat dissipation, further contributing to its longevity and performance under challenging conditions.
With an M20 x 1.5 thread mounting option and an IP67 rating, the XCC3510PS84SBN is designed for easy installation and protection against dust and water ingress, ensuring operational safety and efficiency in harsh environments. The encoder’s max load torque of 0.5 Nm allows for compatibility with a wide range of actuators and motors, enhancing its versatility across different applications.
The Schneider XCC3510PS84SBN Absolute Encoder is compatible with various PLCs and motion control systems, offering a seamless solution for multiturn applications requiring high precision and reliability. Its modular design and robust construction make it an ideal choice for applications in manufacturing, robotics, and automation sectors seeking enhanced control and performance.
To further ensure ease of use and maintenance, the encoder comes with detailed installation and operational manuals, providing guidance on setup, calibration, and troubleshooting. Schneider’s commitment to quality and support extends to comprehensive technical documentation, ensuring that users can maximize the benefits of the XCC3510PS84SBN Absolute Encoder in their operations.
