Brand:Mitsubishi Electric
Model:QD70P8
Type:Multi Axis Positioning Module
Axes Supported:Up to 8 axes
Control System:PTP (Point To Point), Path control (linear; arc; helical), Speed control, Speed-position switching control, Position-speed switching control
Output Type:Transistor outputs
Interpolation Capabilities:Linear, circular, helical
Maximum Pulse Rate:200K pulse/second
Connection Type:2 x 40-pin connectors
Mounting Mode:Backplane / rack
Certifications:CE, UL, RoHS

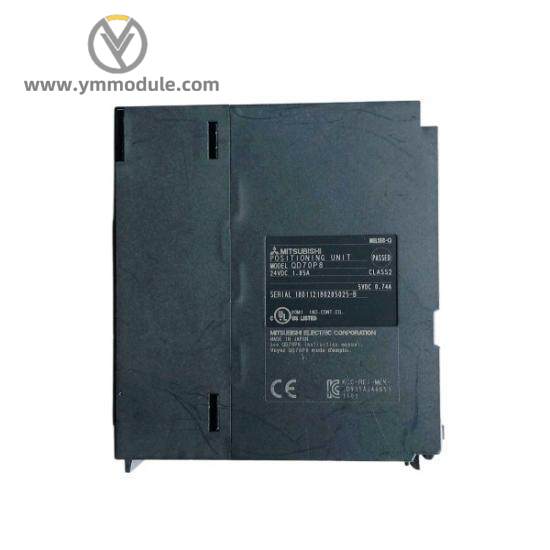

The Mitsubishi QD70P8 Q Series Multi-Axis Positioning Module is a high-performance solution for multi-axis control in industrial automation environments.
It provides unparalleled precision and reliability in various applications, including robotics, packaging machinery, and conveyor systems.
With support for up to 8 axes, this module supports a wide range of control systems, from simple point-to-point movements to complex path controls like linear, arc, and helical motions, as well as speed and position control switching.
Its robust design features transistor outputs, making it ideal for applications requiring quick response times and accurate positioning.
Easy installation and maintenance are ensured through its backplane or rack mounting options, with two 40-pin connectors facilitating seamless integration into existing systems.
