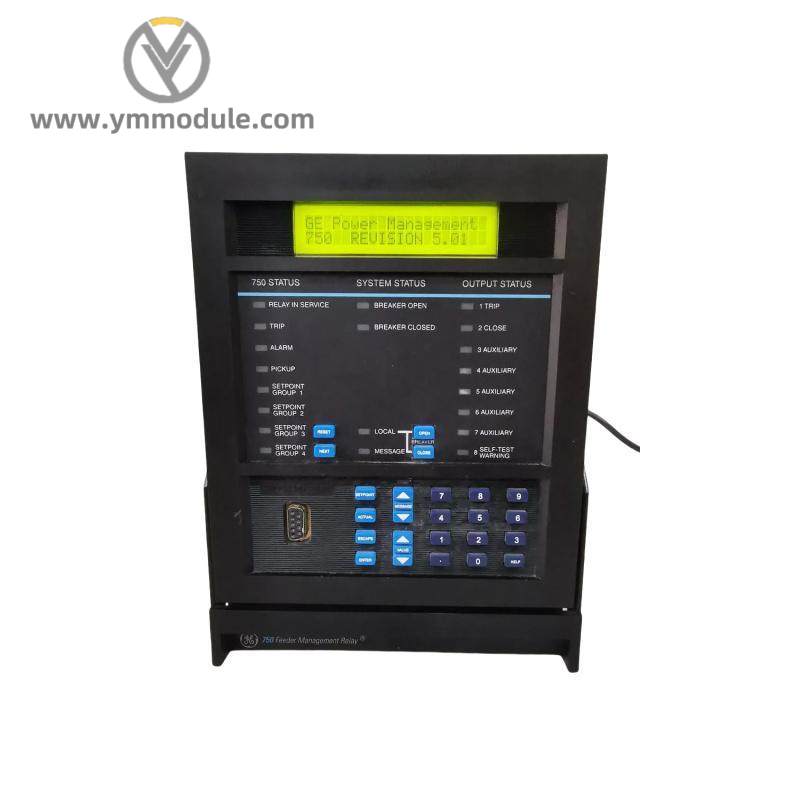

GE SR750-P5-G5-S5-HI-A20-R: High Performance Feeder Management Relay

Place of Origin:USA

Order Number:SR750-P5-G5-S5-HI-A20-R

Custom Processing:Yes

Item No.:SR750-P5-G5-S5-HI-A20-R

Brand:GE

Model:SR750-P5-G5-S5-HI-A20-R

Operating Voltage:Up to 480V AC

Output Frequency:50 kHz

Certified Product:Yes

Series:SR750-P5-G5-S5-HI-A20-R

Material Coding:SR750-P5-G5-S5-HI-A20-R

Analog Outputs:Type Active, Supports Modbus RTU or DNP 3.0 protocols

Red Breaker Closed LED:Indicates breaker status

Insulation Voltage:300V

Overvoltage Pickup Level:0 to 1.25 × VT

Waveform Capture Channels:4 currents, 3 voltages, 14 logic input states, and 8 output relays

    The GE SR750-P5-G5-S5-HI-A20-R is an advanced feeder management relay engineered to provide unparalleled protection and control for distribution feeders. It is designed with cutting-edge technology to ensure seamless integration with existing systems and enhanced operational efficiency.

    This relay boasts a wide range of features, including time overcurrent protection, frequency protection, and wave form capture channels for up to 4 currents, 3 voltages, 14 logic input states, and 8 output relays. This comprehensive suite of functionalities allows for precise monitoring and management of feeder conditions.

    Equipped with a high insulation voltage of 300 V and an overvoltage pickup level adjustable from 0 to 1.25 × VT in steps of 0.01, it ensures robust protection against potential system failures. Its versatile communications protocol support makes it compatible with various automation systems, enhancing its adaptability and scalability.

    The relay’s modular design allows for easy installation on a standard 19-inch panel, either independently or alongside other GE units, providing flexibility in system setup. Additionally, the inclusion of LED indicators provides real-time status feedback, enabling operators to quickly identify and address any issues.

    Designed for durability and reliability, the GE SR750-P5-G5-S5-HI-A20-R is a premium choice for critical infrastructure applications requiring stringent safety and operational standards. It is backed by GE’s commitment to quality and support, ensuring peace of mind for long-term system operation.
