Product Type:Axis Controller Module
Counter Resolution:24 bit
Inputs:HEDL (HP / AVAGO interface) / RS422
Encoder Power Supply:+5 V or +15 V selectable with jumper
Output Voltage:Low: 0 to 2 V, high: 3 to 34 V, Imax = 10 mA
Voltage Range:18 to 34 VDC

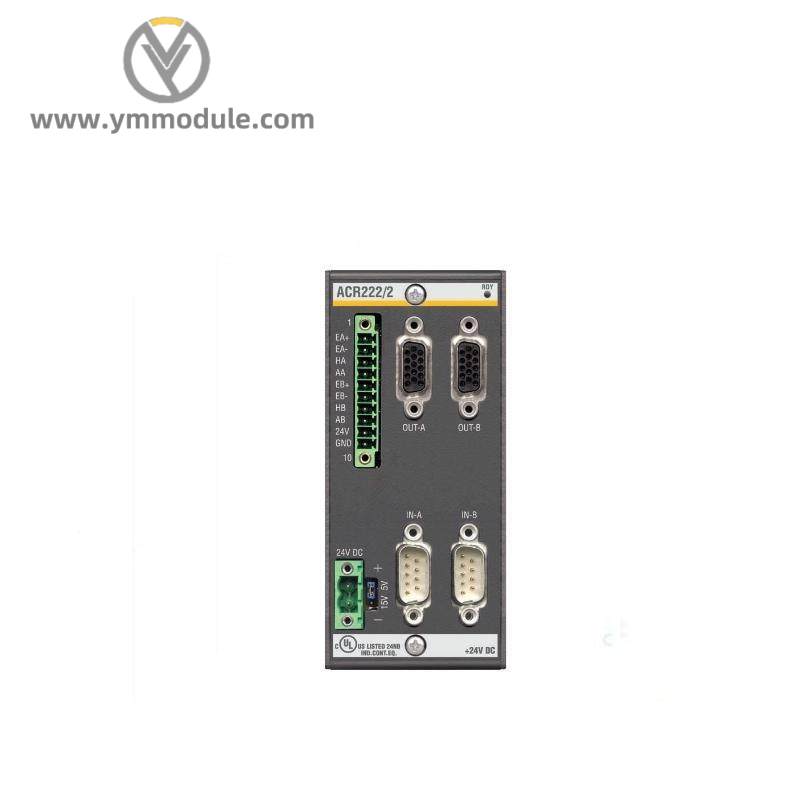

Engineered with precision and efficiency in mind, the Bachmann ACR222/2 Axis Controller Module is an essential component for advanced industrial automation systems. This module ensures smooth operation and precise control, critical for high-speed applications where accuracy is paramount.
Featuring a 24-bit counter resolution, the ACR222/2 offers exceptional data handling capabilities, making it suitable for complex control scenarios. Its versatile input options include HEDL and RS422, allowing seamless integration with various encoder systems.
The module supports dual encoder power supply configurations, providing flexibility in power management and enhancing system reliability. With adjustable output voltages, users can tailor the performance to meet specific application requirements.
Equipped with 150kHz outputs and 1MHz inputs, this module ensures high-speed communication and control, ideal for stepper motor applications. The inclusion of eight digital inputs (DI) at 24V supports comprehensive monitoring and control functions.
Acceleration modes such as linear, sine squared, and parabolic provide versatility in controlling different types of movements, enhancing system performance across various industries. The absence of a power amplifier allows for more efficient energy utilization, contributing to overall cost savings and environmental sustainability.
