Input Voltage (AC):230 VAC / 460 VAC, 3-Phase
Input Frequency (AC):50-60 Hz
Nominal Input Current (AC):4 Amperes
Output Voltage (AC):230 VAC / 460 VAC, 3-Phase
Programmable Frequency Range:0-400 Hz
Maximum Continuous Output Current:7 Amperes
Maximum Peak Output Current:14 Amperes
Internal Shunt Resistance:120 ohms
Shunt On Rating:800 V DC

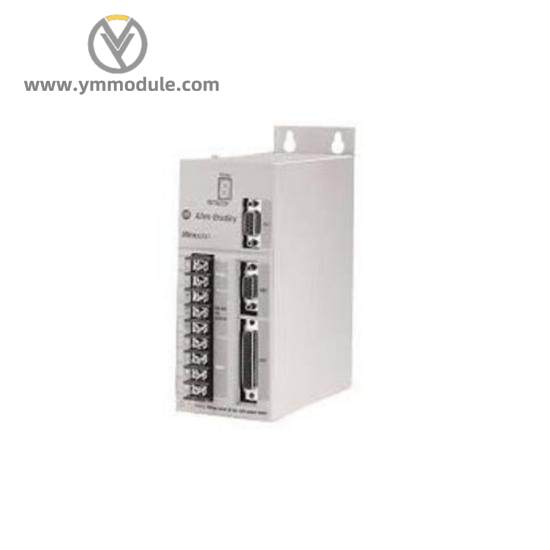

The Allen-Bradley 2098-DSD-HV030-SE AC Drive is engineered to provide unparalleled performance in challenging industrial environments. Its robust design ensures reliability and efficiency in a wide range of motion control tasks.
Featuring a compact footprint, this servo motor is easily integrated into existing systems, enhancing productivity without compromising space. The internal shunt resistance facilitates precise torque control, making it suitable for applications requiring high accuracy.
With support for programmable frequency ranges, the Allen-Bradley 2098-DSD-HV030-SE allows users to tailor the motor’s operation to meet specific application needs, from smooth motion to high-speed dynamics.
The 2098-DSD-HV030-SE boasts an impressive power rating, capable of delivering continuous output currents of 4 Amperes and peak currents of 8 Amperes, ensuring robust performance under varying loads. This makes it an ideal choice for applications demanding high power outputs.
Additionally, the AC Drive supports advanced features like DeviceNet communication, enabling seamless integration with Allen-Bradley’s CompactLogix and ControlLogix controllers, Human Machine Interfaces (HMIs), and Supervisory Control and Data Acquisition (SCADA) systems. This integration capability enhances remote control and automation capabilities, streamlining operations and reducing downtime.
