Ports per Module:8
Copper Ports:8 x 10/100 Full/Half Duplex, Autonegotiate
Power Requirements:20V AC / 24V DC
Input Power Range:10-24V AC, 10-35V DC
Inrush Current, Max:2.2A
Power Consumption, Max:4 W (6VA), Current 400 mA at 10V DC Max
Enclosure Type Rating:Meets IP20, Din Rail Mounted, Series B

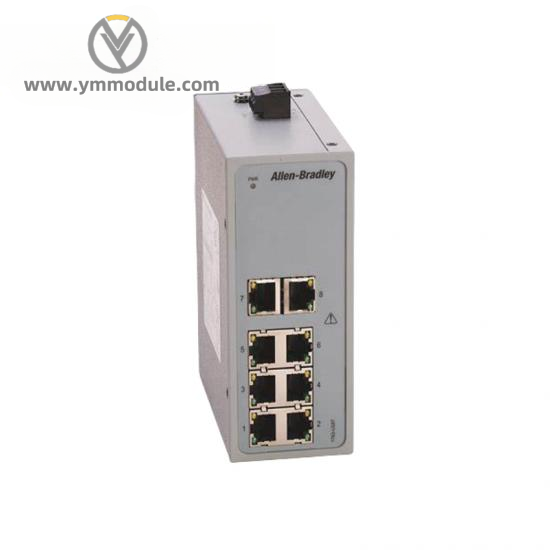

Crafted for industrial environments, the Allen-Bradley 1783-US8T is equipped with a robust enclosure rated for IP20 protection, ensuring it can withstand harsh industrial conditions.
This unmanaged Ethernet switch supports eight copper ports, each capable of operating in either full or half duplex modes, enabling efficient data transfer rates of up to 10/100 Mbps.
With its wide input power range, from 10-24V AC and 10-35V DC, the 1783-US8T is designed for flexibility in various industrial settings, accommodating different power supply scenarios.
The device’s maximum inrush current of 2.2A ensures stable operation during initial power-up, minimizing the risk of voltage drops or power surges.
Efficient power consumption, capped at 4W (6VA) at 10V DC, makes the 1783-US8T energy-efficient, reducing operational costs without compromising on performance.
DIN rail mounting capability allows for easy installation and integration into existing industrial control systems, streamlining setup and maintenance processes.
