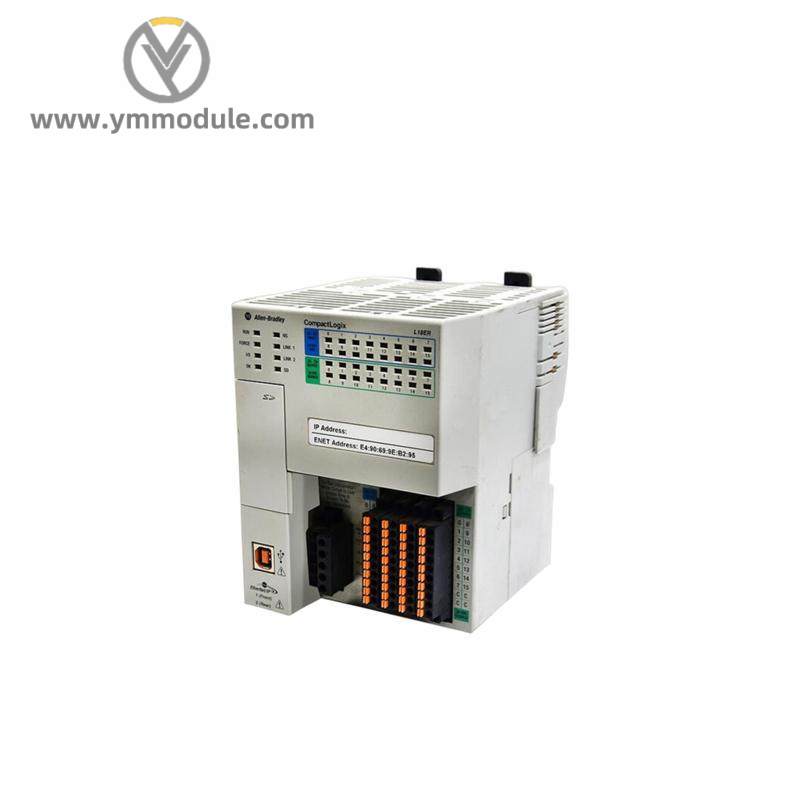

Allen-Bradley 1769-L18ER-BB1B Ethernet Controller

Processor:Powerful CPU

Memory:0.5MB RAM

Expansion:Up to 8 expansion modules

Backplane:POINT Bus

Digital I/O:16 DI (sink), 16 DO (source)

Ethernet Ports:2 Ethernet ports (DLR)

Motion Control:2-axis CIP motion

Network Communications:Supports Class 1, 3 network comm.

TCP Connections:8 TCP connections

Servo Drive Connections:2 servo drive connections

    Integrating Allen-Bradley’s renowned reliability, the 1769-L18ER-BB1B Ethernet Controller offers a robust platform for complex industrial automation tasks. Its compact design, featuring an embedded processor with ample memory, ensures efficient operation and easy integration into existing systems.

    With support for Ethernet connectivity, this controller enables fast data transfer and enhanced network performance, ideal for applications requiring real-time communication and high-speed data processing.

    Equipped with up to 8 expansion modules, the 1769-L18ER-BB1B provides flexibility to adapt to various industrial needs, from simple control scenarios to sophisticated automation setups. The POINT Bus backplane facilitates seamless module interconnection, enhancing system scalability.

    Featuring 16 digital inputs (sink) and 16 digital outputs (source), the controller is capable of handling a wide range of input/output requirements. Its dual Ethernet ports (Direct Link Router) support direct connection to network devices, optimizing network topology and reducing latency.

    The 1769-L18ER-BB1B also supports Class 1, 3 network communications, ensuring compatibility with diverse industrial protocols. With 8 TCP connections and 2 servo drive connections, it caters to advanced motion control applications, making it suitable for precision manufacturing and process control environments.
