Model Type:MicroLogix 1200 Programmable Logic Controller
Product ID:1762-L40BWAR
Allen-Bradley Type Designation:PLC
Number of Inputs:20 Standard 24VDC, 4 Fast 24VDC
Number of Groups:1
Voltage Category:24VDC
Output Voltage Range:20.4-26.4VDC
Outputs:(20) Sourcing, (4) Fast Sourcing, (16) Relay
Mounting:DIN Rail, Panel
Input Power:24 Volts DC
Operating Voltage Range:20 to 26.4 Volts DC
Communication Ports:Embedded 8-pin mini-DIN (DF1, DH-485, ASCII, MODBUS)
Programming Port:Left Side
Length:180 MM
Width:90 MM
Height:87 MM
Temperature Rating:-20 To 60 DEG C
Environmental Conditions:Relative Humidity: 5 – 95% Noncondensing, Vibration: 3 G At 10 – 500 HZ, Shock Operating: 30 G, Shock Non-operating: Panel Mount 50 GDIN Mount 40 G

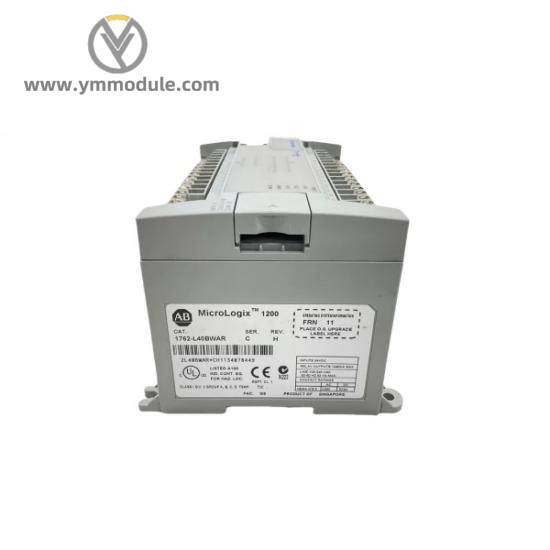

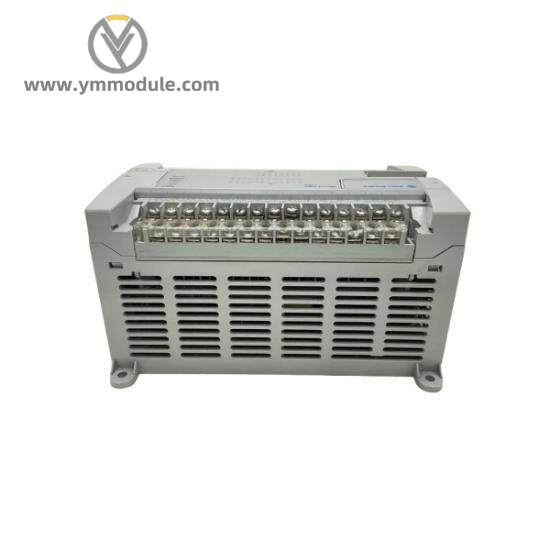

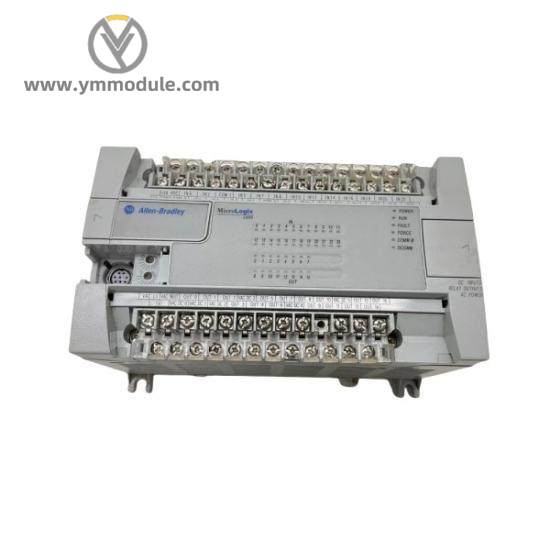

Integrating advanced microprocessor technology, the Allen Bradley 1762-L40BWAR MicroLogix 1200 programmable controller is engineered to deliver precise control in a compact form factor, making it ideal for applications requiring reliable automation solutions.
Featuring a robust interface suite, this controller supports diverse communication protocols including RS-232/RS-485, Ethernet/IP, facilitating seamless integration with a wide array of devices and systems.
Equipped with 40 I/O points, the 1762-L40BWAR allows for versatile configuration, accommodating both high-speed and standard input/output requirements, ensuring flexibility in addressing complex automation challenges.
Built with Allen Bradley’s renowned quality standards, this controller boasts a rugged design capable of enduring harsh industrial environments, guaranteeing reliable performance under varying temperature conditions and vibration levels.
Offering efficient power management through its 24VDC supply, the 1762-L40BWAR ensures minimal energy consumption without compromising on operational efficiency, making it an environmentally conscious choice for modern industrial setups.
