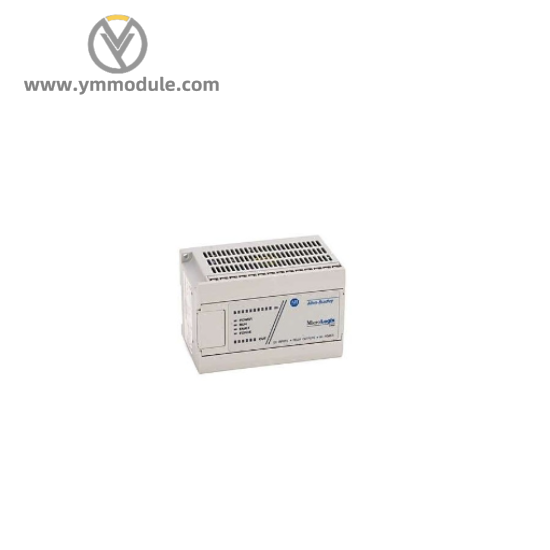

Allen-Bradley 1761-L16BWA MicroLogix 1000 Programmable Controller

Manufacturer:Allen-Bradley

Model Number:1761-L16BWA

Module Type:MicroLogix 1000

Series:Programmable Controller

Input Voltage:120-240 VAC

Input Current:Max. 100 mA per channel

Output Voltage:24 VDC

Output Current:Relay: 0.5 A per channel, Solid State: 0.3 A per channel

Number of Inputs:16

Number of Outputs:16

Programming Interface:(1) RS-232/RS-485, (1) Ethernet/IP

Power Supply:24 VDC

Mounting Options:DIN Rail, Panel

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

Relative Humidity:5% to 95%, non-condensing

Shock Resistance:Panel Mount: 50g, DIN Rail: 40g

Vibration Resistance:3g at 10Hz to 500Hz

    The MicroLogix 1000 PLC is engineered with an ultra-fast processor speed, ensuring swift response times and efficient execution of complex control algorithms. Its robust memory size allows for ample space to program intricate control logic without compromising performance.

    With support for up to 16 I/O points, the MicroLogix 1000 caters to a wide range of automation needs, from simple switching applications to more sophisticated control scenarios. Its versatile I/O capacity ensures compatibility with diverse industrial components.

    Featuring versatile communication interfaces including RS-232, RS-485, and Ethernet, the MicroLogix 1000 enables seamless integration with existing networks and devices. This facilitates data exchange, monitoring, and control from remote locations, enhancing operational efficiency.

    Operated on a reliable power supply ranging from 12 VDC to 24 VDC, the MicroLogix 1000 ensures consistent performance regardless of the application environment. Its compact design and lightweight construction make it ideal for space-constrained environments, while its durable build withstands harsh industrial conditions.

    Designed with user-friendly programming tools and intuitive interface, the MicroLogix 1000 simplifies the setup and maintenance process. It supports ladder logic, structured text, and function block diagrams, catering to users with varying levels of expertise. This flexibility ensures quick deployment and easy troubleshooting, saving time and resources.
