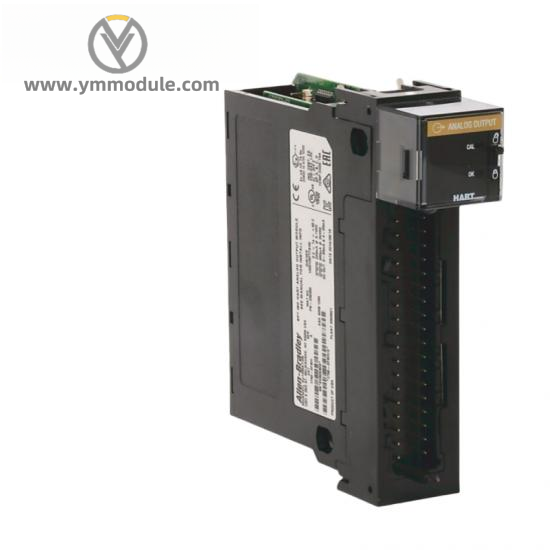

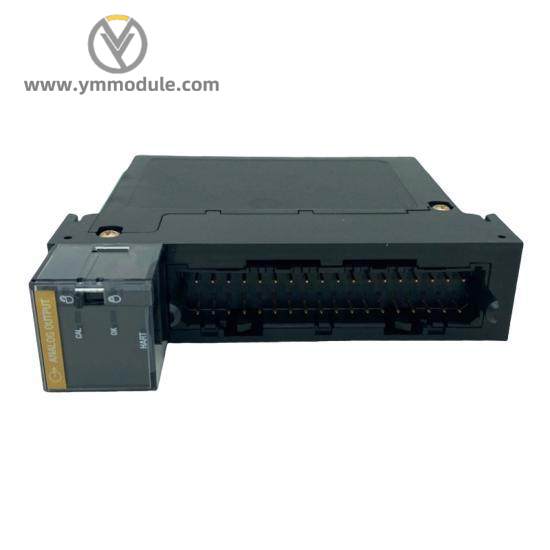

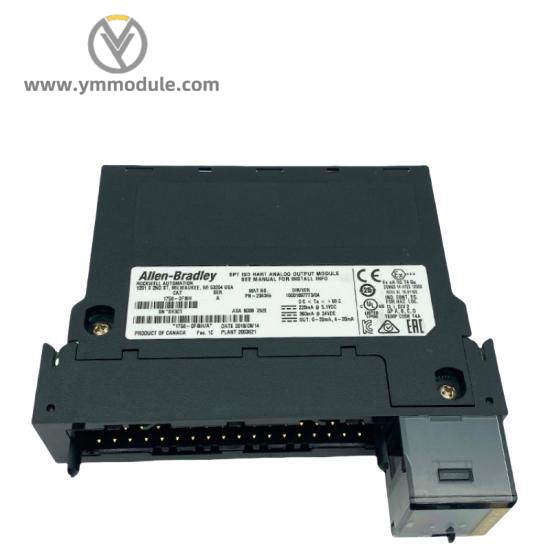

Allen-Bradley 1756-OF8IH ControlLogix Analog Output Module with HART Protocol

Model Type:ControlLogix

Model Number:1756-OF8IH

Manufacturer:Allen-Bradley

Number of Channels:8

Output Type:Analog

Protocol:HART

Input Voltage Range:12 to 32VDC

Output Voltage Range:0 to 10VDC or 4 to 20mA

Isolation Voltage:30V (Continuous)

Current Consumption:≤970mA at 5.1VDC, ≤1.7mA at 24VDC

Communication Interface:ControlNet

Mounting Type:Chassis-based

Enclosure Type:Open type

RFI Suppression:Radiated: 10V/M at 1KHz sine-wave 80% AM from 80 – 2000MHz, 10V/M at 200Hz 50% pulse 100% AM at 900MHz

    Engineered for robust performance and reliability in demanding industrial environments, the Allen-Bradley 1756-OF8IH ControlLogix Analog Output Module with HART Protocol ensures precise control over various processes and equipment.

    This module supports both current and voltage output types, enabling versatile applications across different industries, from chemical processing to manufacturing.

    The HART protocol integration allows for advanced diagnostics, configuration, and communication directly with field devices, enhancing operational efficiency and maintenance activities.

    Featuring an open-type enclosure design, the module offers easy access for installation and maintenance, while its high isolation voltage ensures safety and protection against electrical disturbances.

    The advanced RF interference suppression feature minimizes signal degradation caused by electromagnetic noise, ensuring stable and accurate data transmission in complex industrial settings.
