Module Type:ControlLogix
Model Number:1756-HSC
Manufacturer:Allen-Bradley
Power Consumption:1.3 W
Operating Voltage Range:24 VDC
Operating Temperature:-40°C to +70°C
Counter Channels:4
Sampling Rate:10 kHz
Counter Modes:Up/Down, Up, Down, Modulo
Counter Resolution:1 microsecond
Communication Protocol:EtherNet/IP
Enclosure Type:Conformal Coating
Dimensions (WxHxD):1.6 x 1.6 x 4.1 inches
Weight:0.3 kg

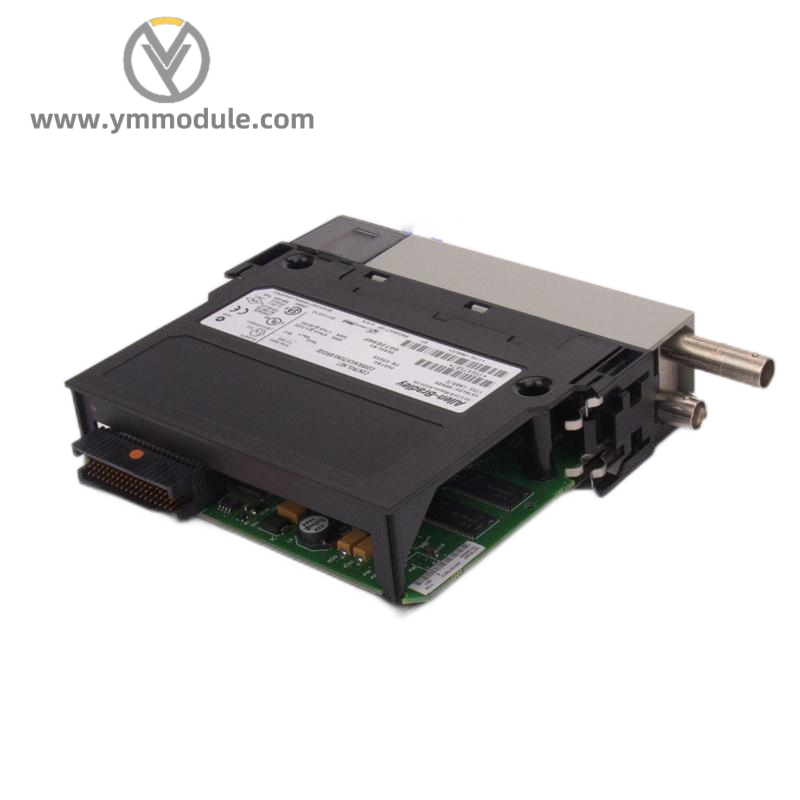

The Allen Bradley 1756-HSC ControlLogix High Speed Counter Module is a specialized component engineered for critical high-speed counting tasks in demanding industrial settings. It ensures accurate and reliable performance across a wide range of applications, from packaging lines to complex manufacturing processes.
With an exceptionally high sampling frequency of up to 100 kHz, this module excels in processing data at lightning speed, making it ideal for scenarios requiring precise timing and synchronization.
Featuring four independent counting channels, the 1756-HSC offers versatility in handling multiple simultaneous counting tasks without compromise. Its ability to switch between up, down, and up/down counting modes allows for greater flexibility in addressing various operational needs.
Providing a resolution of 0.001 count, the module delivers unparalleled precision, essential for applications where accuracy is paramount. Coupled with a counter accuracy of ±1 part in 4 million, users can rely on consistent and dependable results.
The inclusion of MODBUS TCP/IP communication interface enables seamless integration within existing network architectures, facilitating easy setup and maintenance. Additionally, its robust temperature range (-40°C to 85°C) and IP20 enclosure rating ensure durability and reliability in harsh industrial environments.
