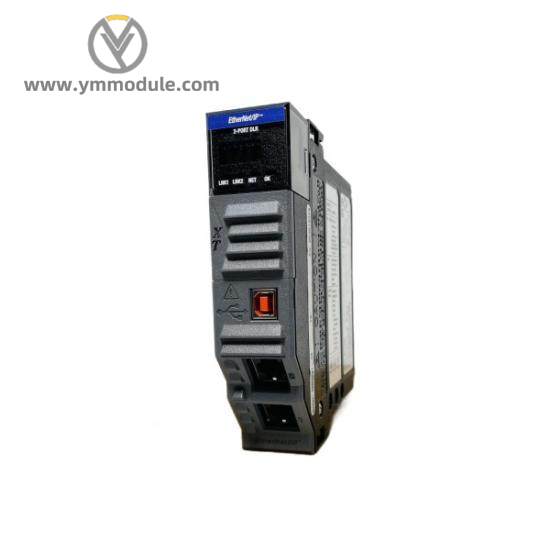

Allen-Bradley 1756-EN2TRXT EtherNet/IP Bridge Module

Model Type:Communication Module

High Capacity IP Module:Yes

Manufacturer(s):Allen Bradley

ControlLogix Communication:Yes

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 Mbps

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 °C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Not applicable

    Engineered for high-performance integration, the 1756-EN2TRXT module is a robust solution for enhancing network capabilities within ControlLogix systems.

    This module seamlessly connects ControlLogix PLCs with EtherNet/IP networks, ensuring reliable data transmission and control functions across diverse industrial settings.

    Featuring an open-type enclosure and compatibility with shielded or unshielded twisted pair cables, it ensures durability and flexibility in various installation scenarios.

    Equipped with an Ethernet interface, it supports speeds up to 10/100 MBPS, delivering fast and efficient communication between devices.

    Designed for industrial strength, this module withstands extreme environmental conditions, including temperatures ranging from 0 to 60 degrees Celsius and high humidity levels, making it suitable for demanding applications.
