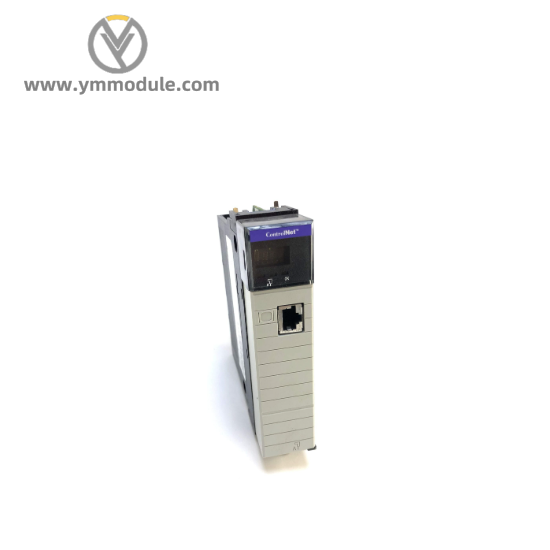

Allen Bradley 1756-CN2/C High Capacity IP Bridge Module

Model Type:Capacity Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-CN2/C

Communication Protocol:DeviceNet

Amperage Rating:Drawn: 400 mA at 5.1 V

Mounting:Chassis

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

    The Allen Bradley 1756-CN2/C High Capacity IP Bridge Module is engineered for high-speed, reliable data exchange in industrial automation environments. Its robust design ensures compatibility with a wide range of industrial networks, enhancing system efficiency and reliability.

    With an open-type enclosure, this module offers easy installation and maintenance, allowing for flexible deployment in various industrial settings. It supports 10/100 Mbps Ethernet/IP communication, ensuring fast and secure data transmission.

    The module’s temperature rating spans from 0 to 60°C, making it suitable for operation in a broad range of industrial climates. The 5.1 W power dissipation ensures efficient thermal management, preventing overheating during prolonged operation.

    The 1756-CN2/C is designed to withstand environmental challenges, with a humidity tolerance of 5 to 95% non-condensing. It can also handle vibrations up to 2 G and withstands shocks of up to 30 G, ensuring durability and reliability in harsh industrial environments.

    Equipped with an Ethernet interface, the module facilitates seamless integration into existing industrial networks. While it does not include a USB port, users can easily connect external devices through compatible cables, enhancing system flexibility and adaptability.
