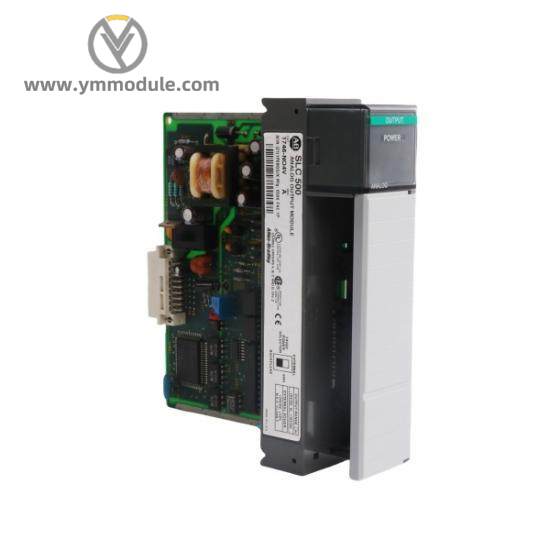

Allen Bradley 1746-NO4V SLC 500 Output Module

Model Number:1746-NO4V

Type:SLC 500

Channels:4 (Input)

Output Range:-10 to 10 V

Output Resolution:1 LSB

Common Mode Voltage Range:-20 to 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (maximum)

Input Range:-20 to 20 mA

Absolute Input Current:-30 to 30 mA (maximum)

Overvoltage Protection:7.5 VAC RMS

Voltage Rating:Over 10 VDC

Current Rating:Backplane current draw: 55 MA

Isolation:Backplane: 500 VDC, Enclosure: Open type

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95%

Communication Ports:Built-in ports for EtherNet/IP, DH+, DH-485, or RS-232 communication

    Introducing the AB 1746-NO4V Output Module from the renowned SLC 500 series, this module is specifically engineered to deliver exceptional performance in demanding industrial settings. Designed for seamless integration into existing systems, it ensures precise control and enhanced operational efficiency.

    Featuring a robust voltage range of +/-10V, this module supports a load capacity of up to 500mA, making it suitable for a wide array of applications requiring accurate signal delivery. Its compact size facilitates efficient installation without compromising on functionality, ensuring minimal impact on system space.

    Equipped with advanced communication capabilities through RS-485 interface, the AB 1746-NO4V facilitates smooth data exchange between various components of an industrial automation system, enhancing overall system reliability and responsiveness.

    Withstanding a broad temperature range from -40°C to 85°C, this module operates reliably in harsh environments, ensuring consistent performance under varying conditions. Its panel mount design allows for easy installation and maintenance, contributing to the longevity and durability of your automation system.

    Certified to meet stringent industry standards including UL, CE, and ISO 9001, the AB 1746-NO4V Output Module adheres to the highest quality and safety benchmarks, providing peace of mind for users seeking dependable solutions for their industrial automation needs.
