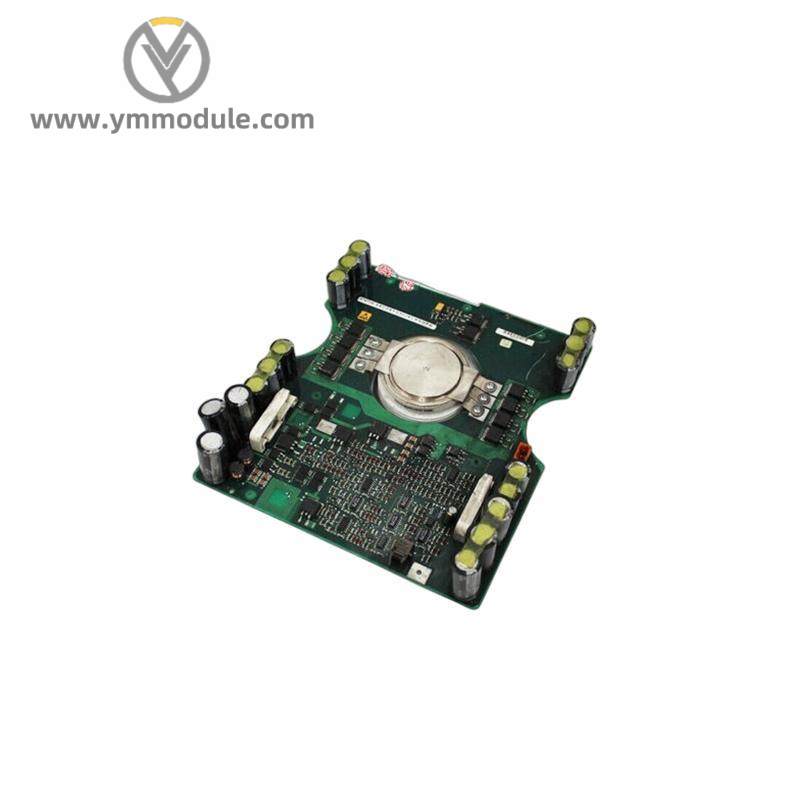

ABB 5SHX 0845F0001 3BHL000385P0101 – Advanced IGCT Module

Module Type:IGCT

Product ID:5SHX0845F0001

Order Number:3BHL000385P0101

Weight:0.6 kg

Dimensions (WxHxD):175.26 mm x 35.56 mm x 297.18 mm

Operating Temperature Range:-20°C to +60°C

Input Voltage Range:DC 24V to 60V

Output Current Capacity:Up to 100A

Insulation Class:Class B

Protection Level:IP20

    The ABB 5SHX0845F0001 IGCT module is designed with state-of-the-art semiconductor technology, providing seamless integration into complex industrial control systems. Its compact size and robust design enable efficient power handling in demanding environments.

    Featuring a wide operating temperature range, this module ensures reliable operation across various industrial settings, from cold storage facilities to hot manufacturing plants. Its high insulation class ensures safety and minimizes the risk of electrical faults.

    With an exceptional current capacity, the ABB 5SHX0845F0001 is capable of managing significant power demands without compromising on efficiency. This makes it an ideal choice for applications requiring high-power density and fast response times.

    The module’s IP20 protection level safeguards against dust and splashes, ensuring durability in dusty or wet conditions commonly found in industrial settings. This enhances the longevity and maintenance-free operation of the system.

    Backed by ABB‘s commitment to quality and customer support, the 5SHX0845F0001 IGCT module comes with comprehensive documentation and access to expert technical assistance. This ensures easy installation and seamless integration into existing systems, minimizing downtime and maximizing productivity.
