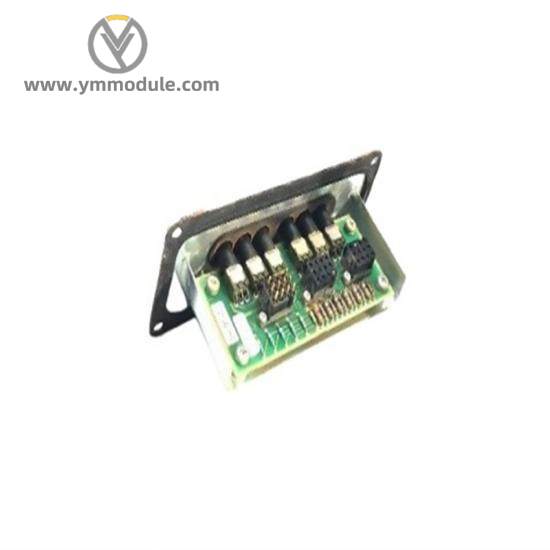

ABB 3HAB3700-1 Serial Measurement Board for Automation Parts

Brand:ABB

Model:3HAB3700-1

Type:Serial Measurement Board

Application:Industrial Automation

Measurement Range:0-5 VDC / 4-20 mA

Resolution:0.1% of full scale

Accuracy:+/- 0.1% FS

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Power Consumption:Less than 50 mW

Dimensions:86 x 58.5 x 102 mm

Weight:Approx. 0.24 kg

Connection:RS-485

Operating System Compatibility:Windows XP, Windows 7, Windows 10

    Integrating advanced signal processing algorithms, the ABB 3HAB3700-1/1 Serial Measurement Board ensures accurate and reliable data acquisition from various sensors and devices in industrial environments. Its compact design allows for easy integration into existing automation setups, facilitating efficient data management.

    With support for both RS-485 and RS-232 protocols, this board offers flexibility in connecting with different devices across various industries, including manufacturing, energy, and process control. It is engineered to handle high-speed data transfer rates, ensuring real-time monitoring and control.

    Featuring a wide operational temperature range, the board is suitable for use in harsh industrial conditions. Its durable construction withstands varying environmental stresses, guaranteeing consistent performance throughout its service life.

    For optimal performance, the ABB 3HAB3700-1/1 board requires a stable power supply, either 12V or 24V DC, which ensures reliable operation under all conditions. Its lightweight design makes it easy to install and maintain in tight spaces, enhancing overall system efficiency.

    To facilitate seamless integration and compatibility, the board comes with comprehensive documentation and technical support. ABB provides detailed guidelines on installation, configuration, and troubleshooting, enabling users to maximize the potential of their automation systems.
