Power Rating:30A at 12VDC
Operating Temperature Range:-40°C to +125°C
Input Voltage Range:6VDC to 15VDC
Current Efficiency:95%
Board Size:136mm x 60mm
Package Type:SMD
Operating Humidity:5% to 95% non-condensing

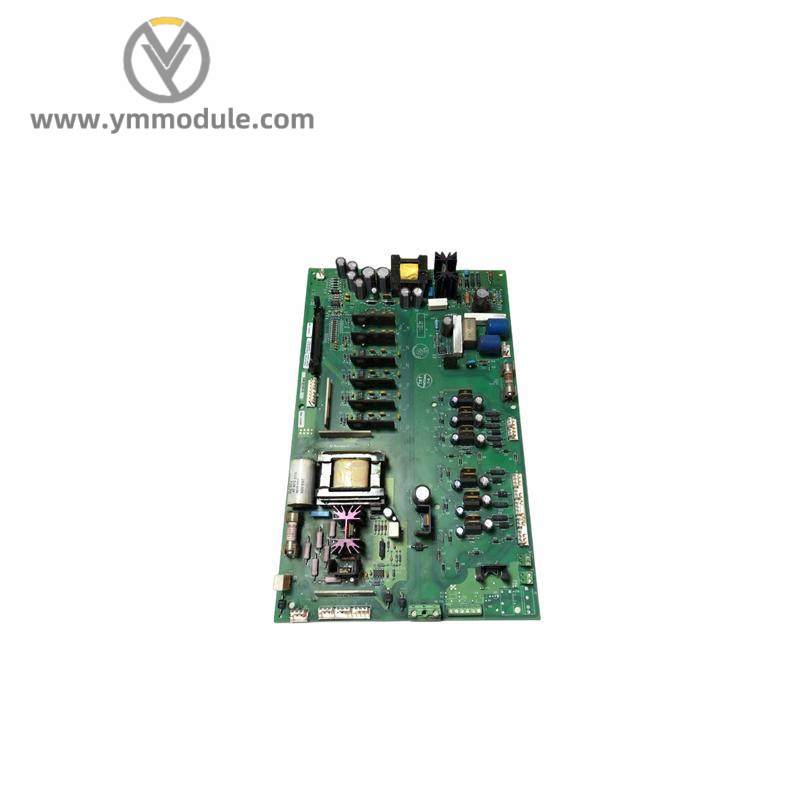

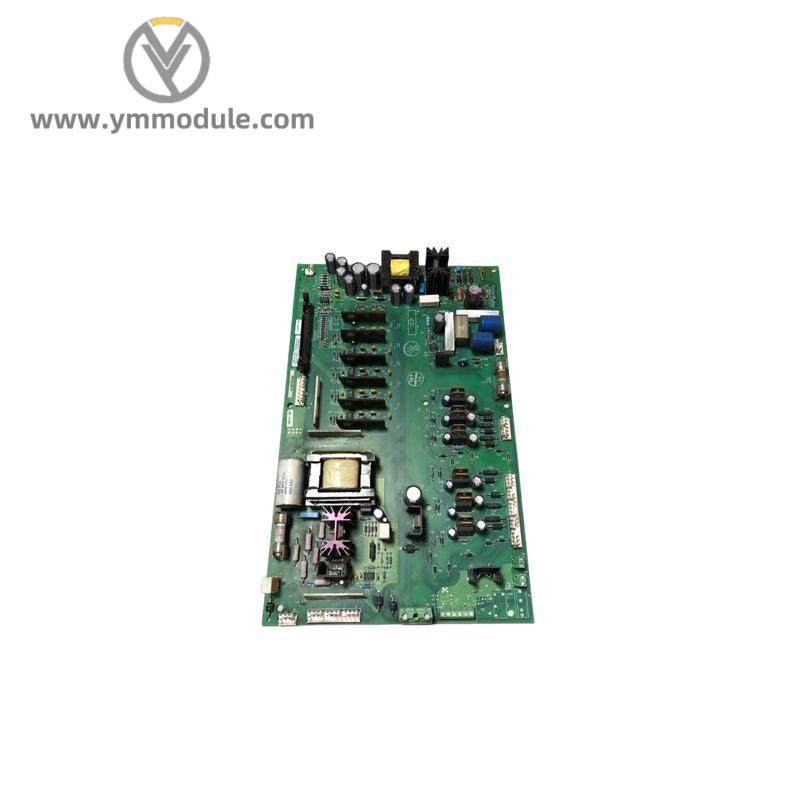

The ABB 1336-BDB-SP30D PCB Gate Drive Board is engineered for exceptional performance in power electronics systems, providing accurate gate drive signals for superior control of power semiconductors.
With an operating temperature range from -20°C to +85°C, this board ensures reliable operation in various industrial environments, whether in cold storage facilities or hot manufacturing plants.
Featuring a high-grade FR4 epoxy glass reinforced circuit board, the 1336-BDB-SP30D offers enhanced durability and electrical isolation, crucial for maintaining system integrity in harsh conditions.
Equipped with an RS-485 Modbus RTU interface, the board facilitates seamless integration with existing automation systems, allowing for easy monitoring and control through standard industrial protocols.
Designed with precision and reliability in mind, the ABB 1336-BDB-SP30D PCB Gate Drive Board supports up to 30A of power handling capacity, making it suitable for applications requiring robust current management.
