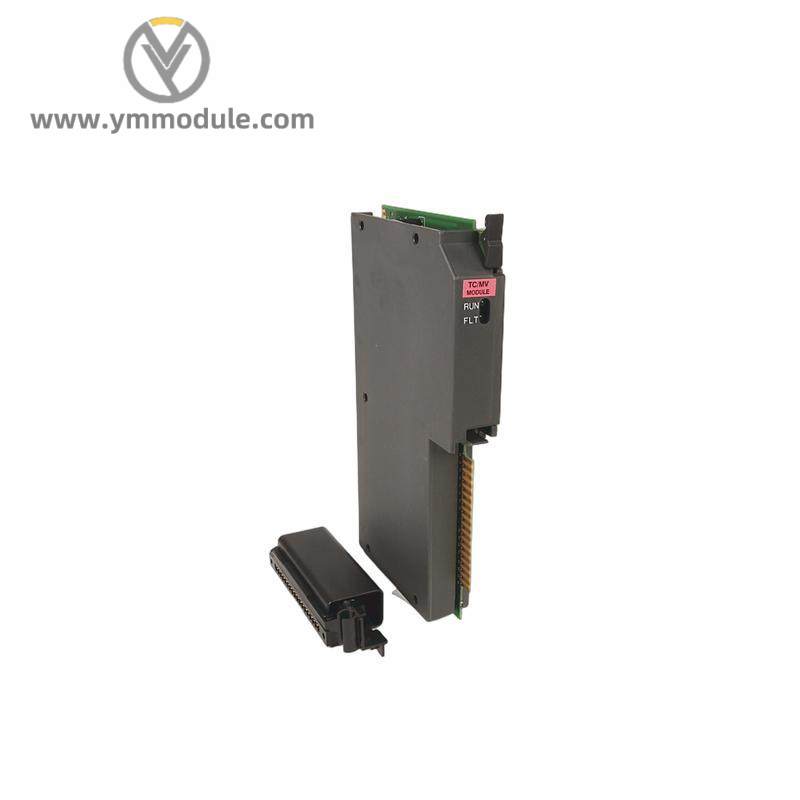

AB 1771-IXHR Input Module, Advanced Control Solution for Industrial Automation

Module Type:Digital Input Module

Model Number:AB 1771-IXHR

Series:Allen-Bradley ControlLogix

Input Channels:16

Channel Configuration:Differential or Non-Differential

Signal Range:DC 0-20mA or 0-10V

Operating Voltage:24Vdc

Communication Interface:RS-485 Modbus RTU

Operating Temperature:-40°C to +85°C

Storage Temperature:-55°C to +85°C

Environmental Rating:IP20

Power Consumption:Typically < 1W

    The AB 1771-IXHR Input Module is engineered to meet the rigorous demands of industrial automation environments, delivering precise signal processing capabilities with high accuracy and robustness against environmental challenges.

    With its extensive input channel capacity, this module ensures efficient data acquisition from sensors, enabling seamless integration into complex control systems.

    Designed for versatility, the AB 1771-IXHR supports both differential and non-differential signal configurations, accommodating a wide range of industrial applications and ensuring compatibility with diverse sensor outputs.

    Featuring a wide operating temperature range (-40°C to +85°C), this module is built to withstand extreme conditions, making it suitable for harsh industrial settings.

    Integrated with Allen-Bradley’s renowned ControlLogix system architecture, the AB 1771-IXHR leverages advanced communication protocols, such as RS-485 Modbus RTU, for reliable data exchange with other control devices.

    Its low power consumption ensures energy efficiency, reducing operational costs without compromising on performance.
