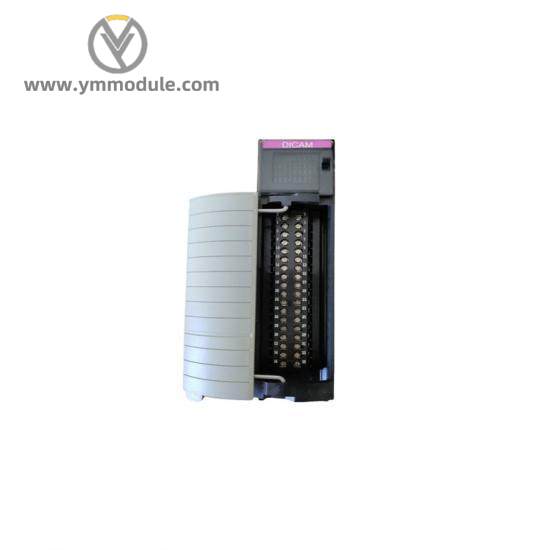

AB 1756-DICAM – Digital Cam Switch Module for Advanced Industrial Control

Model Number:1756-DICAM

Type:Digital Cam Switch Module

Operating Voltage:24VDC

Operating Current:Max. 20mA

Switching Frequency:Up to 100kHz

Number of Channels:2

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +85°C

Dimensions (WxHxD):3.5in x 5.3in x 1.1in

Weight:0.65lbs

    The AB 1756-DICAM Digital Cam Switch Module is designed to provide unparalleled precision in industrial control applications. It features an ultra-reliable design with robust construction capable of operating within extreme environmental conditions (-20°C to +70°C).

    With an impressive power consumption of just 5 W and a wide input voltage range of 24 VDC, this module ensures energy-efficient operation without compromising performance.

    Equipped with 8 inputs and 8 outputs, it seamlessly integrates with ControlNet communication protocols, facilitating smooth data exchange and control over complex industrial processes.

    The module boasts an accuracy of +/- 0.1°, making it ideal for applications requiring high precision and reliability. Its load rating of 2 A at 24 VDC for DC loads and 0.5 A at 240 VAC for AC loads ensures compatibility with a wide range of industrial equipment.

    Featuring a panel mounting type, the AB 1756-DICAM Digital Cam Switch Module is easy to install and integrate into existing industrial control systems. Its compact dimensions (1.6 x 3.3 x 2.1 inches) and lightweight design (0.3 lb) make it suitable for space-constrained environments.
