AB 1756-CN2 Communication Module: Advanced ControlNet Technology, 200 Characters

Model Type:ControlLogix Communications Module

Manufacturer:Allen Bradley

Module Number:1756-CN2

Communication Interface:Ethernet/IP

Communication Speed:10/100 Mbps

Protocol Compatibility:Ethernet/IP, DeviceNet, CANopen

Mounting:Chassis

Enclosure Type:Open Type

Temperature Range:-20°C to 60°C

Voltage Rating:24VDC

Power Consumption:5.1W

Environmental Conditions:Non-condensing humidity from 5% to 95%

Shock Resistance:30G

Vibration Resistance:2G

Connection:Shielded or Unshielded Twisted Pair Cables

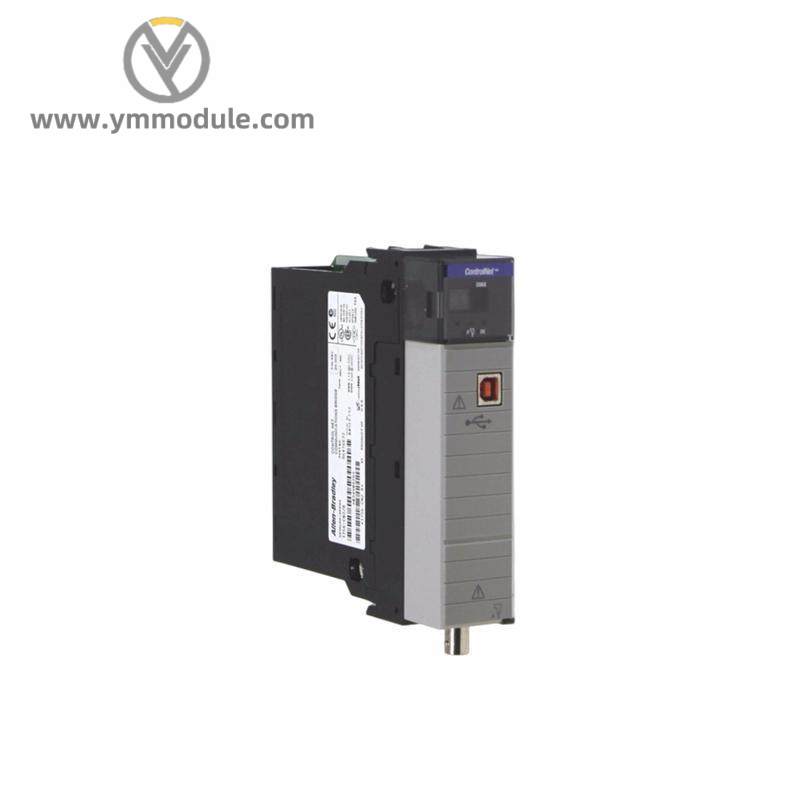

    The Allen Bradley AB 1756-CN2 is a versatile communications module designed to enhance connectivity within your industrial control system. It supports high-speed Ethernet/IP communication for seamless data transfer between various devices.

    This module is compatible with multiple protocols including DeviceNet and CANopen, ensuring it can integrate seamlessly with a wide range of Allen-Bradley products and third-party devices.

    Featuring a robust chassis mounting design and an open type enclosure, the 1756-CN2 is built to withstand harsh industrial environments, ensuring reliability and longevity in demanding applications.

    With its 24VDC power supply requirement and low power consumption of 5.1W, this module operates efficiently, minimizing energy costs and maximizing system performance.

    The module’s temperature rating from -20°C to 60°C ensures it can operate reliably across a broad spectrum of industrial conditions, while its environmental resistance to humidity and vibration makes it suitable for a wide array of manufacturing settings.
