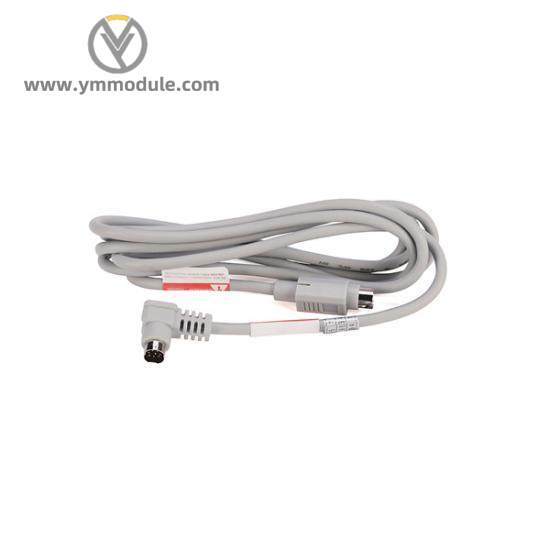

1761-CBL-HM02 MicroLogix Cable: Seamless Integration for Efficient Control Systems

Cable Type:Control

Manufacturer:Allen-Bradley

Model Number:1761-CBL-HM02

Series:MicroLogix

Connector Type:RS-232 / RS-485

Operating Temperature:-20°C to +60°C

Conductor Material:OFC Copper

Insulation Material:PVC

Shielding:Twisted Pair Shielded

Cable Length:Available in 10′, 25′, 50′, and 100′ lengths

Voltage Rating:Up to 250V AC or 30V DC

Data Transfer Rate:Up to 19,200 bps

    The Rockwell Automation 1761-CBL-HM02 MicroLogix Cable is engineered for durability and reliability, making it a perfect choice for demanding industrial environments. Its robust construction ensures long-lasting performance, even under harsh conditions.

    This cable features a high-quality PVC insulation, providing excellent electrical insulation and flexibility, ensuring stable data transmission without interference. The integrated braided shield further enhances signal integrity by reducing electromagnetic noise.

    Designed for easy installation, the cable comes with a DB9 male connector on one end and a DB9 female connector on the other, facilitating straightforward connection to Rockwell Automation’s MicroLogix series controllers. This compatibility simplifies setup and maintenance processes.

    With support for data rates up to 9600 baud, the 1761-CBL-HM02 cable ensures fast and efficient communication between your control system and human machine interface, improving overall system responsiveness and operator experience.

    The wide operating temperature range from -40°F to 140°F (-40°C to 60°C) makes it suitable for use in various industrial settings, whether in freezing cold warehouses or hot manufacturing plants. Its versatile design ensures reliable operation across different environments.
